| General | |
| Weight | 210g ‘without wire’ |
| Dimensions ‘L×W×H’ | 175mm × 72mm × 100mm |
| Wire length | 1.8m |
| Interface type | 2.4G, USB cable is used to connect the base and PC |
| Material | ABS+PC |
| Color | Black |
| User indicators | LED, buzzer |
| Scanning Performance | |
| Light source | Lighting: white LED; Focusing: Green LED; Wavelength: 525nm |
| Image sensor | 640×480 CMOS |
| Processor | ARM32-bit |
| Startup time | 4s |
| Analytical ability | 1D: ≥5mil; 2D: ≥8.7mil @PCS90% |
| Depth of focus | 5mil: 50~130mm;13mil: 50~270mm |
| Scanning mode | Manual scanning, automatic scanning |
| Reading angle | Roll: ±360°; Pitch: ±60° ‘or greater’; Yaw: ±70° ‘or greater’ |
| Field of view | Horizontal 40°, Vertical 30° |
| Motion tolerance | 2.3m/s |
| Input power | 160mA @ 5V DC |
| Light levels | 70000Lux |
| Decode capabilities |
1D: Codabar, Code39, Code32, Interleaved 2 of 5
‘ITF25’, Industrial 2 of 5, Matrix 2 of 5,
Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E,
EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1
databar, GS1 databar limited, GS1 databar expanded
2D: PDF417, Micro PDF417, QR Code, Micro QR,
Data Matrix, Aztec
|
| Environmental | |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5% to 95% ‘non-condensing’ |
| Protection level | IP54 |
| Drop Test | 1.8m, 100times |
| High and low temperature test | Work properly for 30 minutes under simulation of temperature of -20°C and 60°C |
| Transport vibration test | 10H@125RPM |
| Wireless performance | |
| Wireless standard | 2.4GHz |
| Transmission distance | 150m ‘Outdoor open environment’ |
| Storage capacity | 100000 commodity codes ’16MB’ |
| Battery capacity | 1600mAh |
| Battery charging time | About 5 hours |
| Continuous working hours | ≥12hours ‘or 60000 times’ |

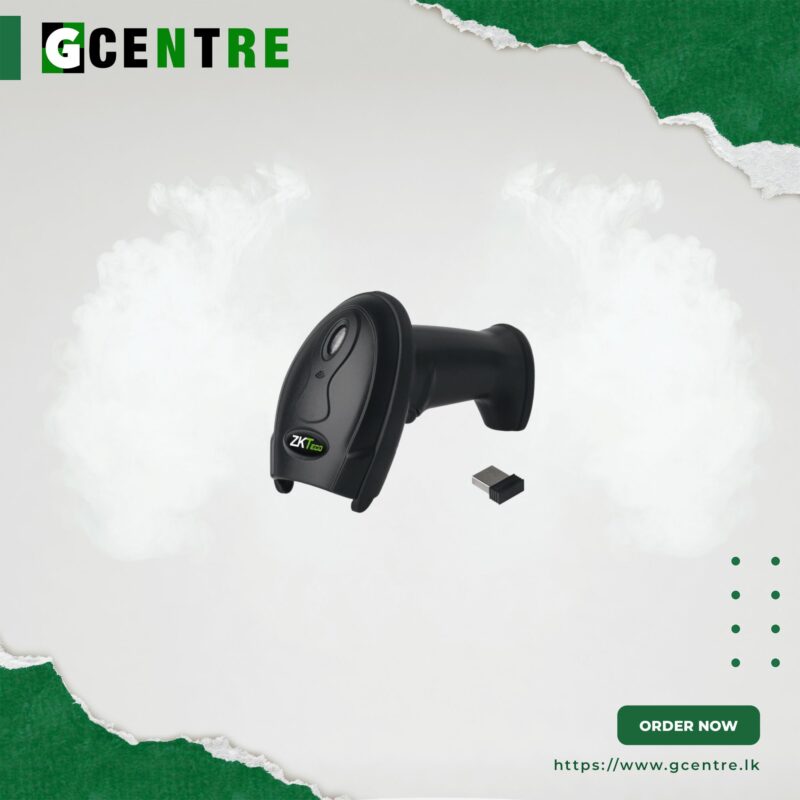

ZKT ZKB202 2D Wireless CCD Barcode
Rs.37,700.00
2.4G, USB cable is used to connect the base and PC
Island wide delivery within 2 days. Buy GCENTER products with confidence.
or make 3 interest free instalments of Rs..12,566.67 with Koko
