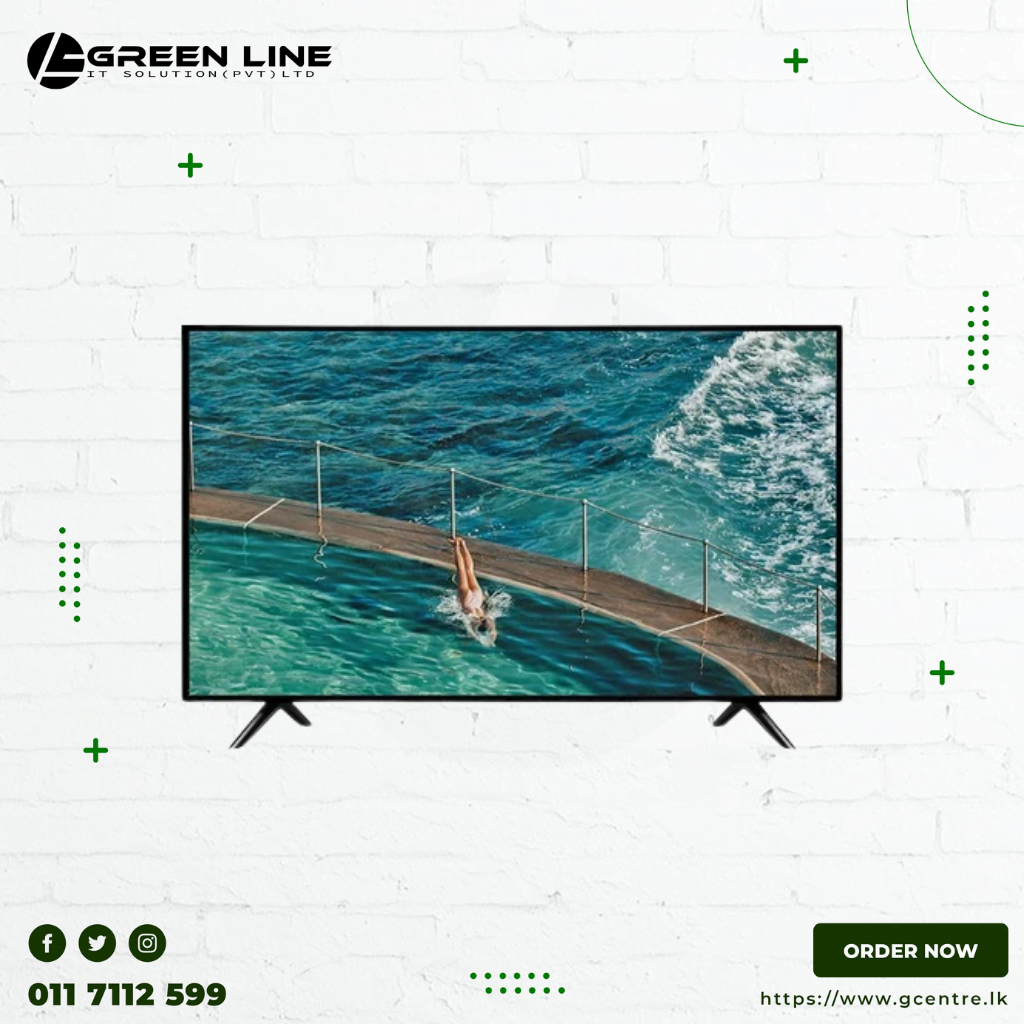

SGL 32″ HD FEATURE TV

Rs.126,800.00

Island wide delivery within 2 days. Buy GCENTER products with confidence.

or make 3 interest free instalments of Rs..42,266.67 with Koko

Compare

Specifications



Product Commercial model 32B5100H
Factory model 32E5100EX
Factory Jiangmen
Description 80cm (32″ ) LED Matrix Television
Document Specifications form version HX20190306
Circulation Restricted, internal use only
Status Confirmed
Revision number 2
Date 6/12/19
Issued by LEON
Image display Panel manufacturer Hisense
Panel model JHD315V1H81-T0
Active display area, horizontal dimension mm 697.685
Active display area, vertical dimension mm 392.256
Screen size (rounded to nearest integer) cm 80
Screen size (rounded to nearest integer) inch 32
Display technology LCD/LED lit
Backlight source LED Matrix
Resolution (Horiz x Vert) pixel 1366 x 768
Screen curvature radius mm
Colour depth bit 8bit
Image refresh frequency Hz 50/60
Smooth motion rate 50
3D image
Maximum brightness of white cd/m2 180
Native contrast ratio 1200: 1
Viewing Angle (Horiz / Vert) Degrees 89 / 89
Quantum dot No
Wide colour gamut No
Response Time ms 8
Connectivity RF- Radio frequency input 1
Component or Y Pb (Cb) Pr (Cr) input 0
Audio L/R for component input 0
AV input 1
AV output 0
USB interface type 3.0 (Qty / List….) 0
USB interface type 2.0 (Qty / List ….) 2 / USB 1, USB 2
Optical digital audio output (SPDIF) 1
Earphone jack 1
HDMI ports HDMI inputs 2
HDMI type [email protected] with HDCP version 2.2
HDMI type 1.4 with HDCP version 1.4 Yes
HDMI 2.0 compliant input
ARC -Audio Return Channel
MHL – Mobile High Definition Link input
CEC- Consumer Electronics Control via HDMI
Smart TV Ethernet port (RJ45 connector)
Wi-Fi  protocols IEEE 802.11 {b, g, n, ac, ad, ..}
Wi-Fi bands GHz
DLNA compliance
Bluetooth / BT version
Anyview (Screen mirroring)
SVOD {1 Netflix, 2 YouTube, 3 Stan,  4 Amazon Prime, ….}
Catch-up TV (Iview / SBS on Demand /  Plus 7 / 9 Jumpin / Tenplay)
UHD (4k) streaming
Installed Applications {List ……}
Installed Applications {List ……}
Skype
Freeview Plus – HbbTV 2.0
Web browser [Chrome | Opera | Other]
Digital TV reception Television system (DVB-T / DVB-T2) NO / NO
Video decoder (MPEG2 / MPEG 4) NO / NO
AC3 Surround sound decoder  NO
AS 4599.1 compliance  NO
AS 4933.1 compliance  NO
LCN- Logical channel number and DTV Service name support  NO
Teletext  / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX NO / NO / NO
Subtitles  NO
RF Signal strength indicator  NO
RF Signal quality indicator  NO
RF Bit error rate indicator  NO
EPG- Electronic programming guide, 7 days for all services  NO
Audio description (vision impairment aid)  NO
Parental rating lock  NO
Analogue TV reception Colour-Sound systems in VHF band PAL/SECAM NTSC、(B/G,D/K,I ,M)
Colour-Sound systems in UHF band PAL/SECAM NTSC、(B/G,D/K,I ,M)
Stereo sound decoder {A2, Nicam, ….} NO
Teletext  / Teletext signal interruption (TAB compliant) / 16 : 9   TLTX NO / NO / NO
Subtitles NO
Image processing Backlight control No
Light sensing No
Dynamic backlight control No
Local dimming / controllable zones No
Zoom function settings ( 4:3 / 16:9 / Auto /  Zoom 1 / Zoom 2) Yes / Yes / Yes / Yes / Yes
1:1 Pixel mapping Yes
HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) No / No / No
HDR system (HDR10 / Dolby Vision) No / No
HLG (Hybrid Log-Gamma) for HDR No
HEVC (H.265) decoder No
Dual image (PIP / POP) No / No
Motion enhancement and compensation (MEMC) No
Sound Audio power output per channel Watt 6
Number of speakers (Tweeter / Midrange / Woofer) 0 / 2 / 0
Automatic volume level (AVL) Yes
Audio equalizer Yes
Dolby Digital Yes
Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} SWS(hisilicon)
Lip-sync  adjustment NO
Features On/off timer NO
Power off if no signal Yes
Sleep timer Yes
Program lock Yes
OSD transparency control No
Software version OSD indication Yes
Legal requirements: Disclaimer / Acceptance of Terms No / No
Favourite channels list Yes
Electronic point of sales (E-POS) No
OTA- Over the air software updates No
Voice command No
Screen mirroring {Miracast, Anyview Cast, …} No
Smartphone remote control application {TV remote, …} No
Replaceable demo video for Store mode No
Remote control via serial port No
USB media player Personal Video Recorder No
Time Shift No
DTV Recording (EPG scheduling / start from Standby ) No / No
DivX decoder No
MPEG4 (H.264) / H.265 decoder Yes / NO
DMP- Digital media player content (Music / Video / Photos / Text) Yes / Yes / Yes / Yes
DMP Auto-play No
DMP for UHD content via USB No
DMP File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes  / No / Yes
PVR  File allocation table (FAT / FAT32 / exFAT / NTFS) No / No / No / No
Hotel lock Protected Hotel lock submenu (Password / fixed code) Yes /No
Clone function for programs, sound and image settings. No
Sub-menu lock, including tuning lock No
Keyboard lock Yes
Maximum volume lock Yes
Power on volume Yes
Power on, apply default sound/image settings No
Power on source selection Yes
Power on RF channel selection Yes
Power on mode (On / Standby / Last) No / No / No
Inputs access (Enable / Disable) Yes
Hardware Processor / Cores Hi3731ARQCV1010D00 / 2
Dual Tuner No
Colour (Front bezel, rear, stand) Black / Black /  Black
Speakers mounted in a box Yes
Mains  power switch No
Swivel base No
Compact packaging Yes
Supply  range [Voltage / Frequency ] Volt / Hz 100 ~ 240V / 50, 60Hz
Standby consumption Watt < 0.5W
Maximum time delay Power On to sound an image sec
Installation Stand area (Width / Depth) mm 627/193
Wall mount dimensions (Horiz x   Vert) mm 100 x 200
Wall mount, screw thread mm M6, 12
VESA compliance Yes
Detachable power cord No
Power cord length cm 155
Accessories Remote controller (Technology / Part number ) IR / EN-83801
Battery (size / quantity) AAA / 2
User manual / Quick setup guide 1 / 1
Warranty [In User manual | In separate sheet] In separate sheet
Skype camera (Qty / Part number)
3D glasses type   [Passive | Shutter] / Link [RF | IR | BT]
3D glasses (Qty / Part number)
Dimensions Dimensions with stand (W x H x D) mm 730X479X193
Dimensions without stand (W x H x D) mm 730X432X72.8
Carton box dimensions (W x H x D) mm 826X523X317
Net weight (with stand / without stand) kg 3.9 / 4
Gross weight kg 6
Container load (20ft / 40ft / 40ft HC) 476/976/1220
Licensing and certification EMC- Electromagnetic Compatibility Yes
CB- Electrical safety Yes
HDMI Yes
Dolby Digital Yes
ROHS No
Documentation Panel specifications Yes
Initial specifications (input form) Yes
Confirmed product specifications No
List of DMP formats for audio and video No
(Required before purchase order)
Documentation CB report and certificate Yes
EMC report and certificate Yes
