Essentials
Vertical Segment
Desktop
Processor Number

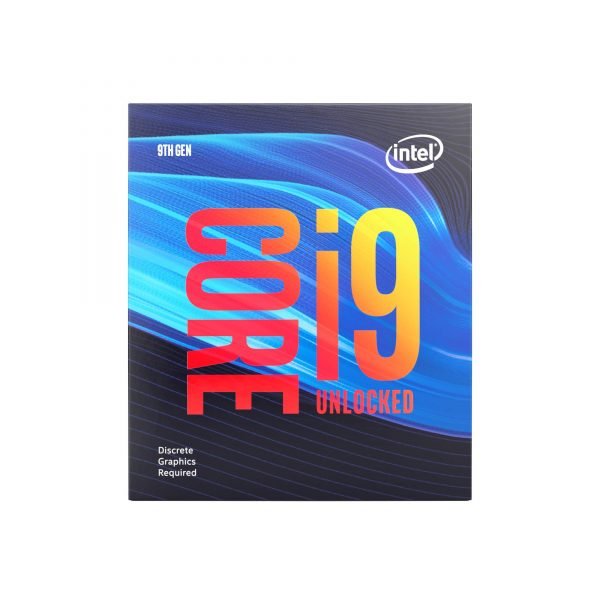

i9-9900K
Status
Launched
Launch Date
Q4’18
Lithography
14 nm
Included Items
Please note: The boxed product does not include a fan or heat sink
Use Conditions
PC/Client/Tablet
Performance
# of Cores
8
# of Threads
16
Processor Base Frequency
3.60 GHz
Max Turbo Frequency
5.00 GHz
Cache
16 MB Intel® Smart Cache
Bus Speed
8 GT/s
TDP
95 W
Supplemental Information
Embedded Options Available
No
Description
https://www.intel.com/content/www/us/en/architecture-and-technology/engineering-new-protections-into-hardware.html
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2666
Max # of Memory Channels
2
Max Memory Bandwidth
41.6 GB/s
ECC Memory Supported ‡
No
Graphics Specifications
Processor Graphics ‡
Intel® UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI 1.4)‡
4096×[email protected]
Max Resolution (DP)‡
4096×[email protected]
Max Resolution (eDP – Integrated Flat Panel)‡
4096×[email protected]
DirectX* Support
12
OpenGL* Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
# of Displays Supported ‡
3
Device ID
0x3E98
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations ‡
Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1151
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015D
TJUNCTION
100°C
Package Size
37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Turbo Boost Technology ‡
2.0
Intel® vPro™ Platform Eligibility ‡
Yes
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
Intel® TSX-NI
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Identity Protection Technology ‡
Yes
Intel® Stable Image Platform Program (SIPP)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions (Intel® SGX)
Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® OS Guard
Yes
Intel® Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
