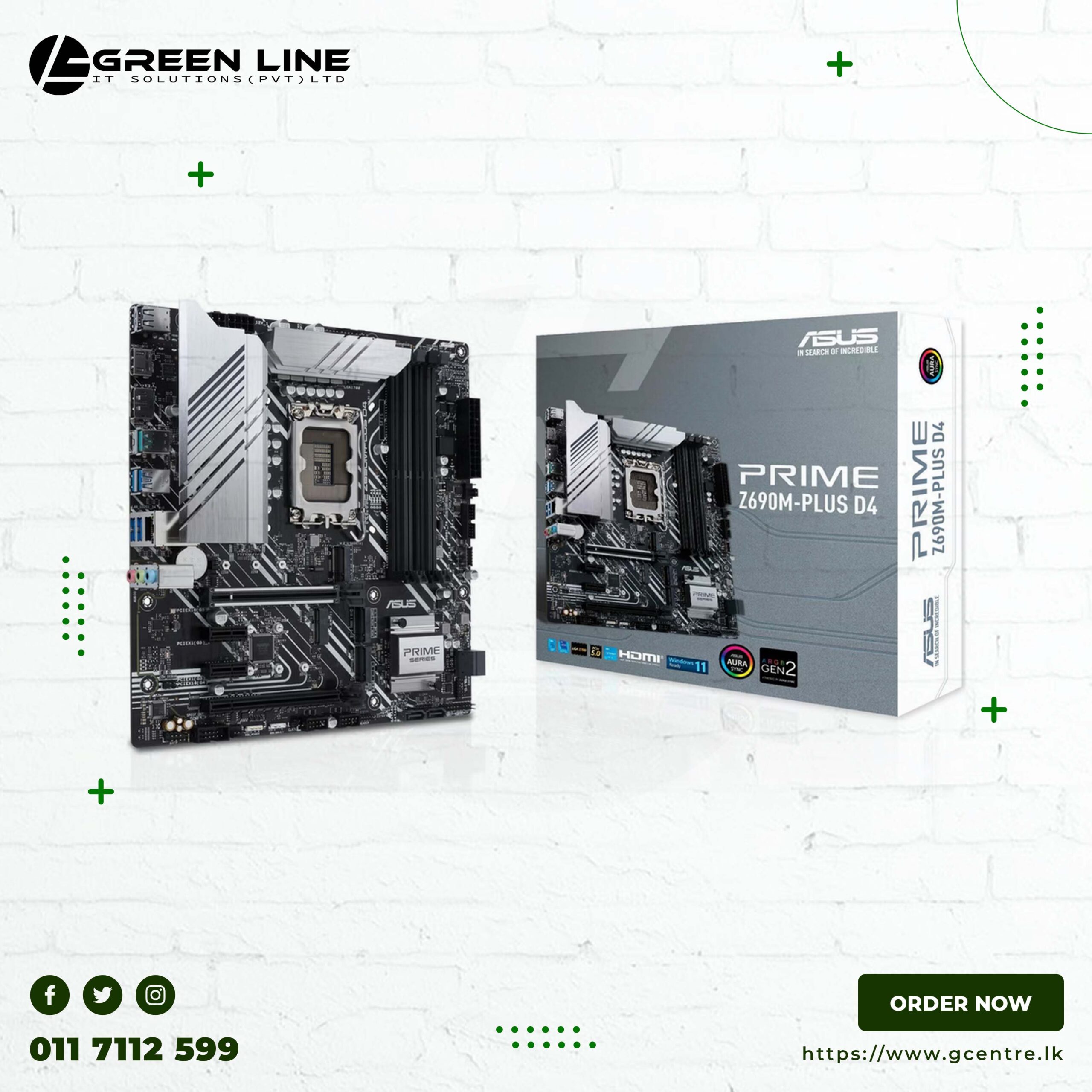

ASUS PRIME Z690M-PLUS D4

Rs.90,000.00

  • BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Ethernet 1 x Intel® 1Gb Ethernet, ASUS LANGuard
  • Form Factor Micro ATX
  • Manageability WOL by PME, PXE
  • Socket Type INTEL 1700 12th Gen

Island wide delivery within 2 days. Buy GCENTER products with confidence.

or make 3 interest free instalments of Rs..30,000.00 with Koko

Compare
Category:

PRODUCT SPECIFICATIONS
ASUS PRIME Z690M-PLUS D4

CPU :

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset :
Z690

Memory :

4 x DIMM, Max. 128GB, DDR4
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/300/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

OptiMem II :
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics :

1 x DisplayPort
1 x HDMI® port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Support [email protected] as specified in DisplayPort 1.4.
Support [email protected] as specified in HDMI 2.1.

Expansion Slots :

Intel® 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Please check PCIe bifurcation table in support site.
Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage :

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet :

1 x Intel® 1Gb Ethernet
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.

USB :

Rear USB:Total 8 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio :

Realtek 7.1 Surround Sound High
Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features :

– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports :

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors :

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power related :

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related :

3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous :

3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Special Features :

ASUS 5X PROTECTION III :

– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O

ASUS Q-Design :

– Q-DIMM
– Q-Slot

ASUS Thermal Solution :
– VRM heatsink design

ASUS EZ DIY :
– ProCool

AURA Sync :

– AURA RGB header
– Addressable Gen 2 headers

Software Features :

ASUS Exclusive Software :

Armoury Crate :

– AURA Sync
– Fan Xpert 4

AI Suite 3 :

-Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS

ASUS EZ DIY :

– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS :

192 (128+64) Mb Flash ROM, UEFI AMI
BIOS

Manageability :
WOL by PME, PXE

Accessories :
Cables
2 x SATA 6Gb/s cables

Miscellaneous :

1 x I/O Shield
2 x M.2 SSD screw packages

Installation Media :
1 x Support DVD

Documentation :
1 x User guide

Form Factor :
microATX
24.4cm x 24.4cm

Brand

PRIME

Additional information

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Ethernet

1 x Intel® 1Gb Ethernet, ASUS LANGuard

Form Factor

Micro ATX

Manageability

WOL by PME, PXE

Socket Type

INTEL 1700 12th Gen
