Specification:

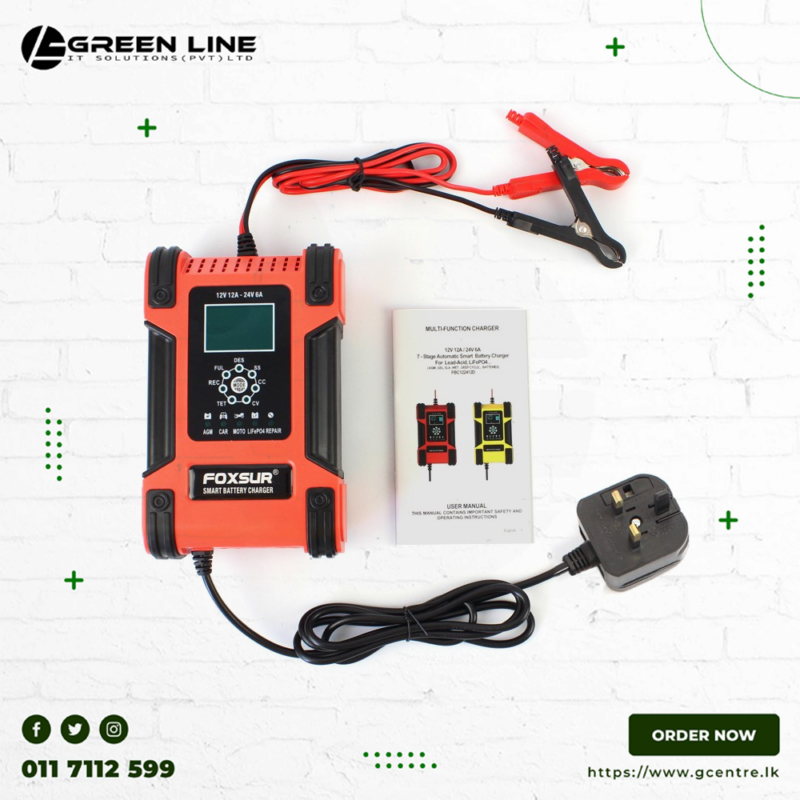

Product name: 12V/24V motorcycle battery charger
Product color: red
Product size (L×W×H): 185x118x70mm
Shell material: ABS
Plug Specifications: European, American, British
Switch Mode Technology: Yes
Polarity Protection: Yes
Output short circuit protection: yes
Non-battery link protection: yes
Overvoltage Protection: Yes
Over temperature protection: yes
Cooling method: built-in fan
Input voltage: 100-240V AC, 50-60Hz
Rated output: 12V 12A, 24V 6A
Minimum startup voltage: 8.0V
Battery Range: 6-200Ah
Thermal Protection: 65’C+/-5’C
Productivity: Apps. 85%.
Compliant with standards: CE, IEC60335, EN61000, En55014
Battery Type: Most types of lead-acid batteries, including calcium, gel AGM, LiFePo4, Wet, lead-acid, etc.
Product net weight: 735g
packing list:
1*Car battery charger
1*Instruction
Notice:
This product is suitable for dry batteries, water batteries, lead-acid maintenance-free batteries (lithium batteries can only be charged with iron lithium batteries, other lithium batteries are not applicable)
The red clip is connected to the positive terminal of the battery.
The black clip connects to the negative terminal of the battery.
Notice:
1. If the LED color cannot change from red to green, it means that the battery may be damaged, you should check whether the battery is damaged in advance
2. If the battery is not used for a long time or the electrolyte is insufficient, the voltage will be much lower, and it will be easily damaged, and the battery cannot be recharged.
3. This charger is suitable for battery capacity between 6AH to 200AH, please check the battery capacity (AH) before buying the charger! Thanks!
